Multi Ply Conveyor Belt
Features
Conveyor belt generally consists of cover rubber, carcass and rubber skim coat. The reinforced breaker fabric is used for extra protection.

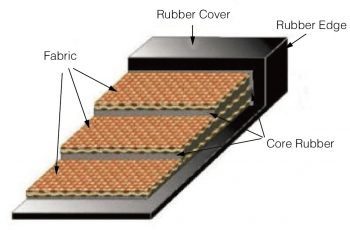

CONSTRUCTION
Conveyor belt generally consists of cover rubber, carcass and rubber skim coat. The reinforced breaker fabric is used for extra protection.
COVER RUBBER
Covers of natural or synthetic rubber are designed to protect the carcass from abrasion, impact deterioration and other injurious influences. They are compounded to meet particular service conditions such as abrasion, oil, heat, fire, chemical resistant and antistatic etc.
CARCASS
Carcass of a belt maintains the belt tension and suppliers structural strength, it does all of the work in supporting and pulling the load. Carcass consists of multiple plies of rubber impregnated fabric bonded with friction and skim coats. The fabrics most commonly used are nylon, polyester and cotton, etc.
RUBBER SKIM COAT
An extra layer compound between plies that increases flex life and creates a more elastic lend so that plies flex without separation. Skim coats cushion fabrics against impact and help protect against moisture.
BREAKER FABRIC
A specially woven fabric between the cover and the carcass to improve adhesion and provide better resistance to cover stripping, gouging or tearing. This is normally used in belts handling primarily crushed and sized material which gives great impact to the belt when lumps drop at a loading point.
